Stainess walker dynomax napa exhaust strap band clamp
Product details:
Band Material: SUS #300 series, SUS #400 series
Bolt: 10.9 Class T Type
Nut:10.9 Class Lock Nut
Washer: Steel, Zinc Plate
H Block: Q235 Cold Drawn Steel
D Block: Zinc Alloy Die Cast
Characters:
1.High-strength fastener hardware with corrosive resistant coating
2.Easy to assemble only one assembly torque point
3.Exclusive reaction block, the reaction block provides a full 360°equal distribution of stretching forces, prohibiting pipe distortion while completing a seal around the joined exhaust components.
|
Band |
SS304 ,430,201 |
|
Nut |
all metal with heat treatment to 10.9 grade |
|
T bolt |
plain steel with heat treatment to 10.9 grade zinc plated |
|
Surface Treatment |
Polishing or customized |
|
No. |
Products |
Spec
(Inch)
|
ID(mm) |
Band
Spec.
(mm)
|
|
1 |
Exhaust clamp
SS304
|
2.0" |
55.5 |
31.8*1.8 |
|
2 |
2.25" |
62.2 |
||
|
3 |
2.50" |
69.0 |
||
|
4 |
2.75" |
75.9 |
||
|
5 |
3.0" |
81.9 |
||
|
6 |
3.50" |
94.8 |
||
|
7 |
4.0" |
107.8 |
||
|
8 |
5.0" |
130.6 |

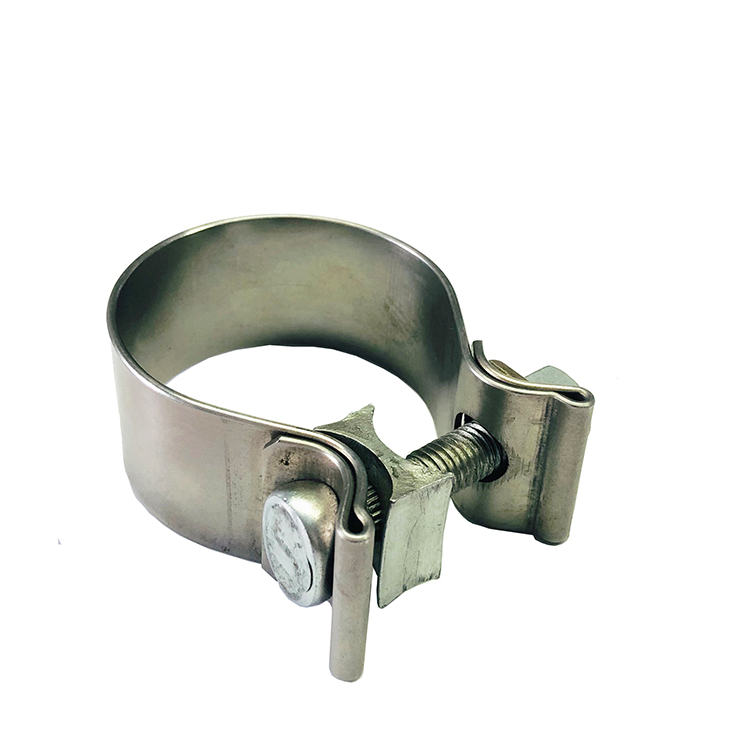

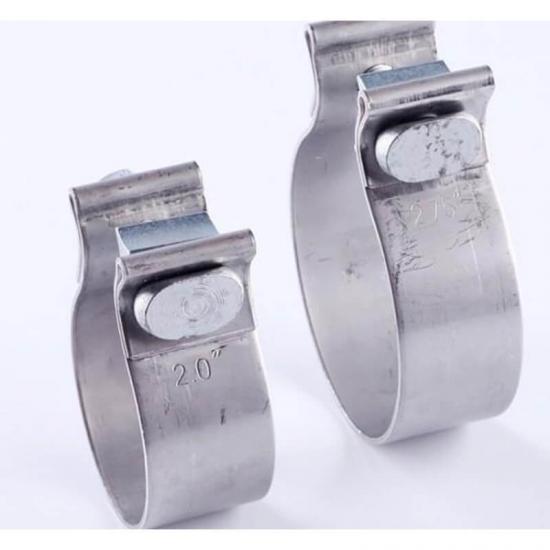

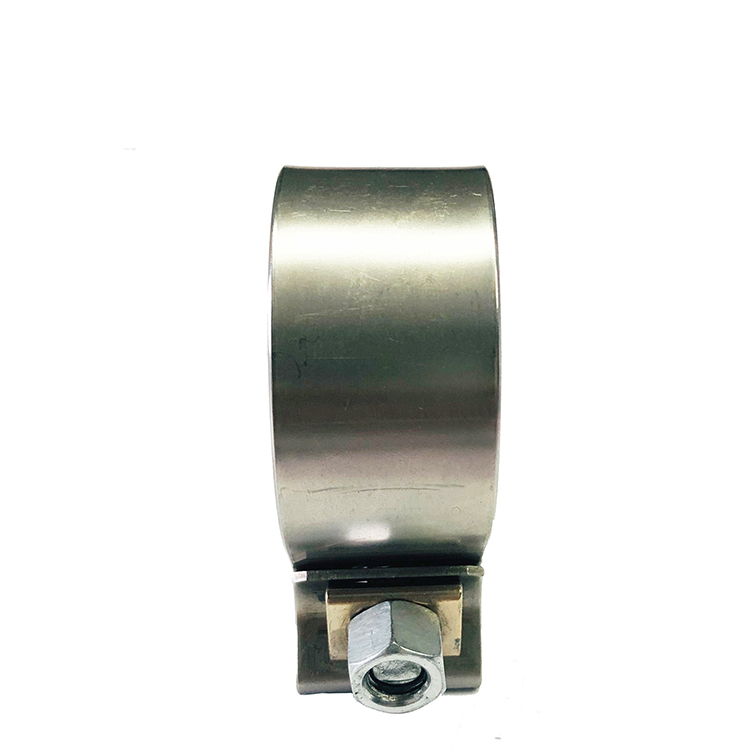

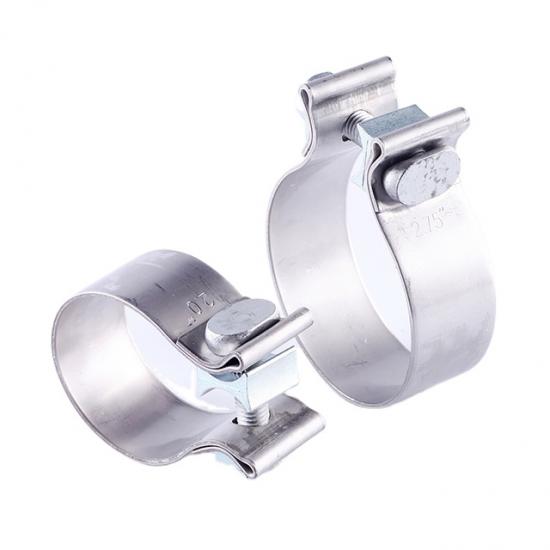

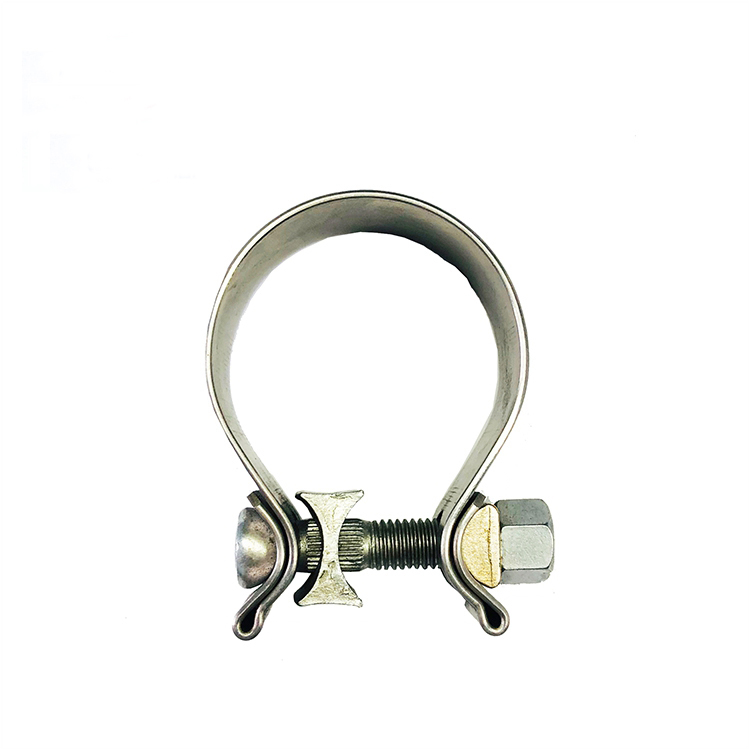

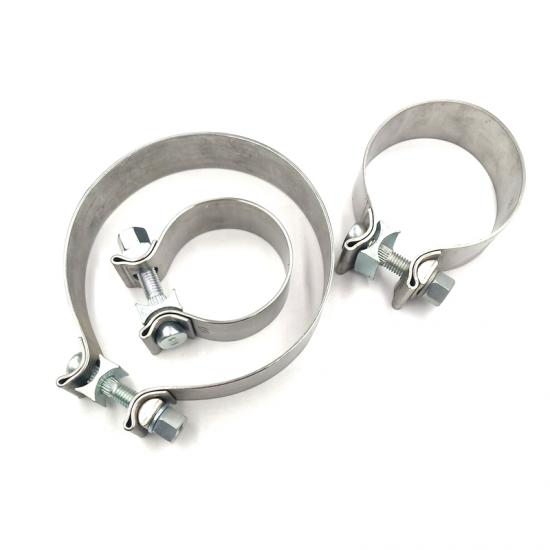

Product show:
Application:
Pack&Shipping:
FAQ：
Q1. Are you a factory or trading company
A: We are a factory
Q2. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. We also pack them according your request.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4. Can I etch the logo on the products?
A: Yes, Etching logo are available.
Q5. How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
