1 inch 1.25 inch flexible exhaust pipe small engine
Product details:

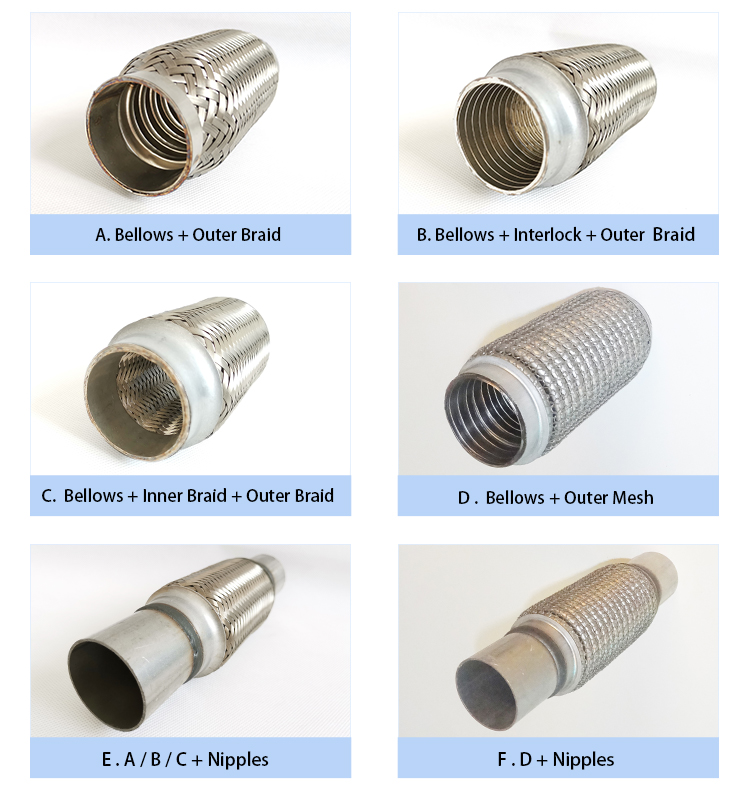

Exhaust Flexible Bellows Types:
A. Bellows + Outer Braid
B. Bellows + Interlock + Outer Braid
C. Bellows + Inner Braid + Outer Braid
D. Bellows + Outer Mesh
E. Type A/B/C + Nipples
F. Type D + Nipples

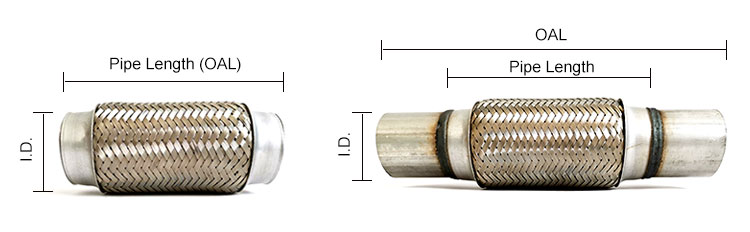

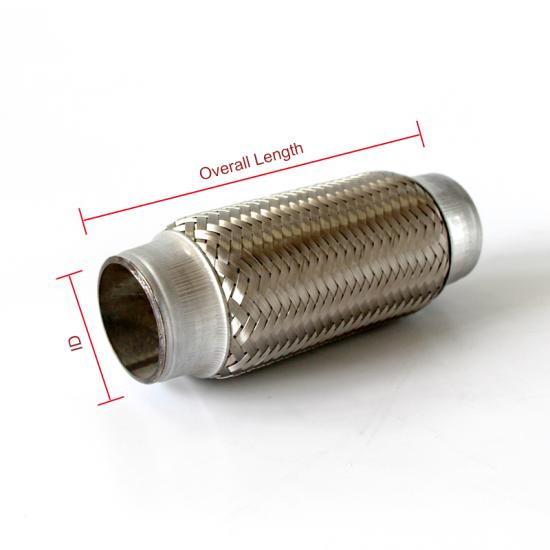

The Main Size for type A,B,C and D
| NDMINAL LINSIDE | OVERALLLENGTH | OVERALLLENGTH O/L | OVERALLLENGTHO/L | NOMINAL INSIDE | OVERALLLENGTH O/L | |
| 1-3/4 " (45mm) | 4 " (102mm) | 2-1/2 "(63.5mm) | 4 " (102mm) | 43mm | 120mm | |
| 6 " (152mm) | 6 " (152mm) | 165mm | ||||
| 8 " (203mm) | 8 " (203mm) | 180mm | ||||
| 9 " (230mm) | 9 " (230mm) | 50mm(52mm) | 120mm | |||
| 10 " (254mm) | 10 " (254mm) | 165mm | ||||
| 11 " (280mm) | 11 " (280mm) | 54.5mm | 120mm | |||
| 2"(51mm) | 12 " (305mm) | 12 " (305mm) | 150mm | |||
| 4 " (102mm) | 3 "(76.2mm) | 4 " (102mm) | 180mm | |||
| 6 " (152mm) | 6 " (152mm) | 200mm | ||||
| 8 " (203mm) | 8 " (203mm) | 250mm | ||||
| 9 " (230mm) | 10 " (254mm) | 60mm(61mm) | 160mm | |||
| 10 " (254mm) | 12 " (305mm) | 200mm | ||||
| 2-1/4 " (57.2mm) | 11 " (280mm) | 6 " (152mm) | 240mm | |||
| 12 " (305mm) | 3-1/2" (89mm) | 8 " (203mm) | 65mm | 150mm | ||
| 4 " (102mm) | 10 " (254mm) | 200mm | ||||
| 6 " (152mm) | 12 " (305mm) | 70mm | 100m | |||
| 8 " (203mm) | 4" (102mm) | 8 " (203mm) | 120mm | |||
| 9 " (230mm) | 10 " (254mm) | 150mm | ||||
| 10 " (254mm) | 12 " (305mm) | 200mm | ||||
| 11 " (280mm) | Other sizes are available,ID32,ID36,ID38,ID40,ID46,ID48,ID115,ID125etc | |||||
| 12 " (305mm) | ||||||

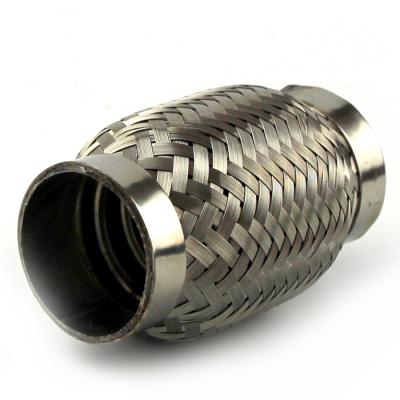

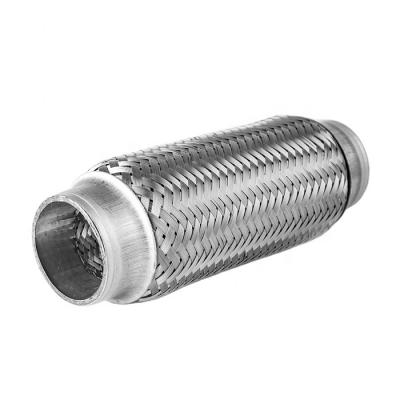

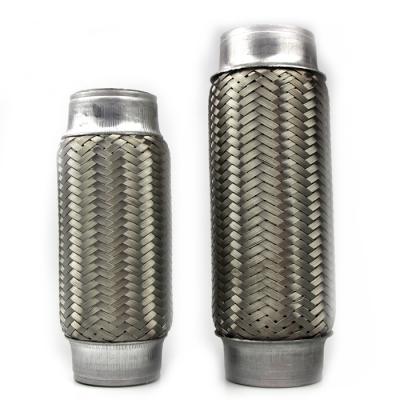

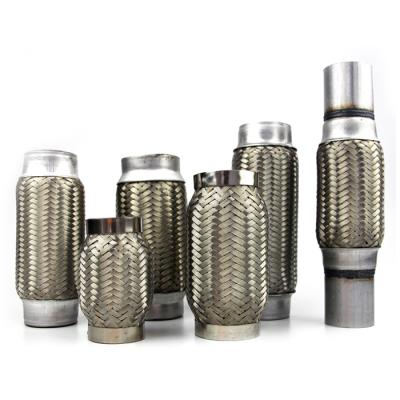

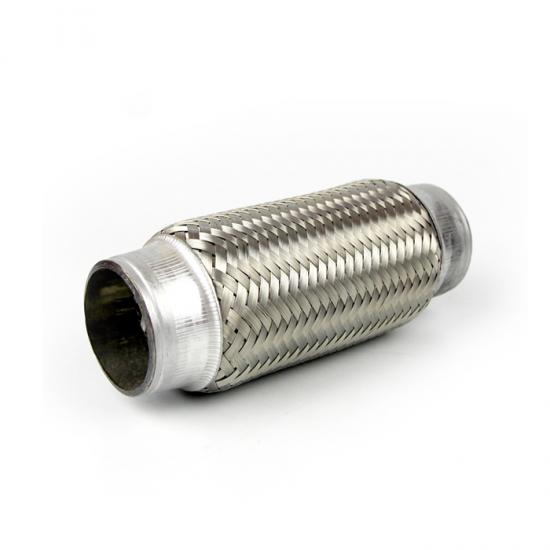

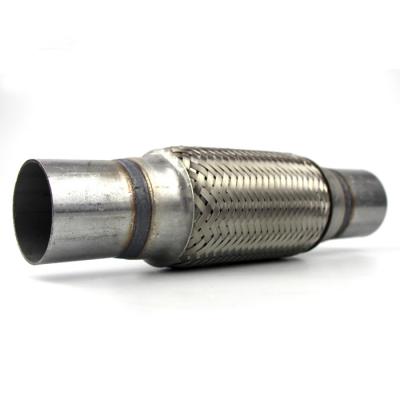

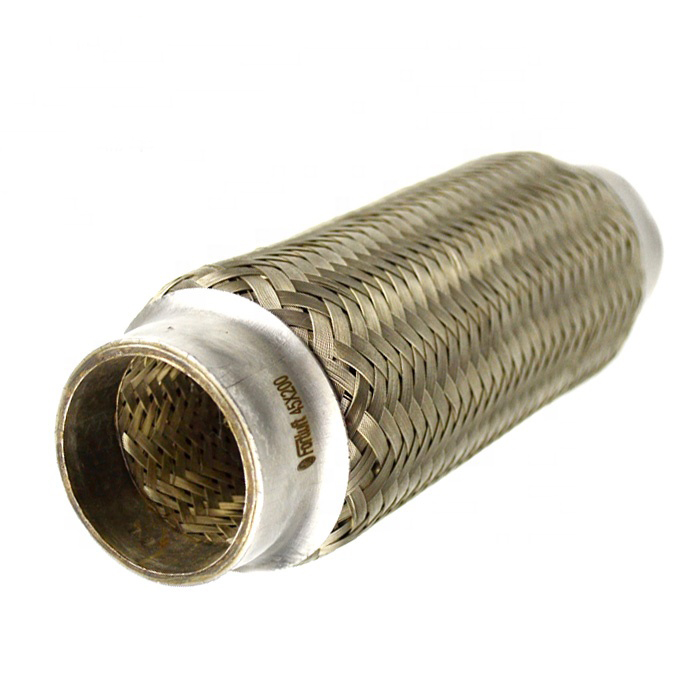

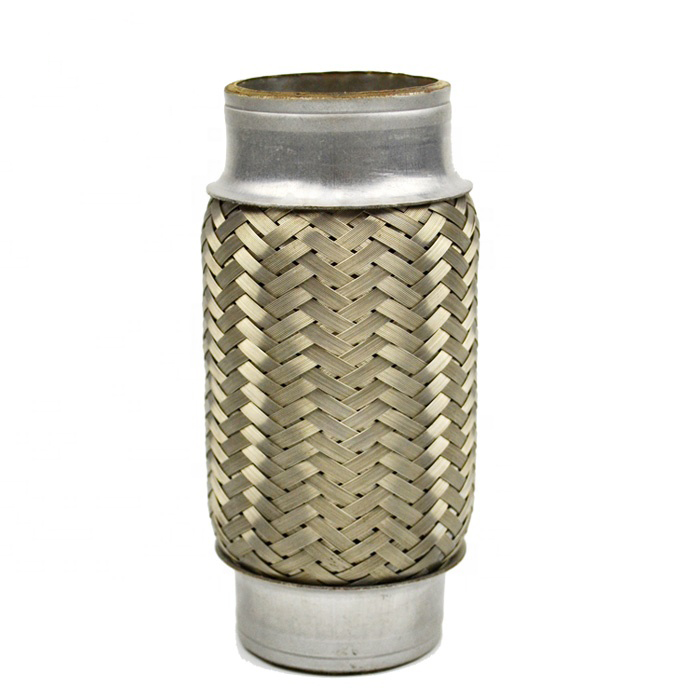

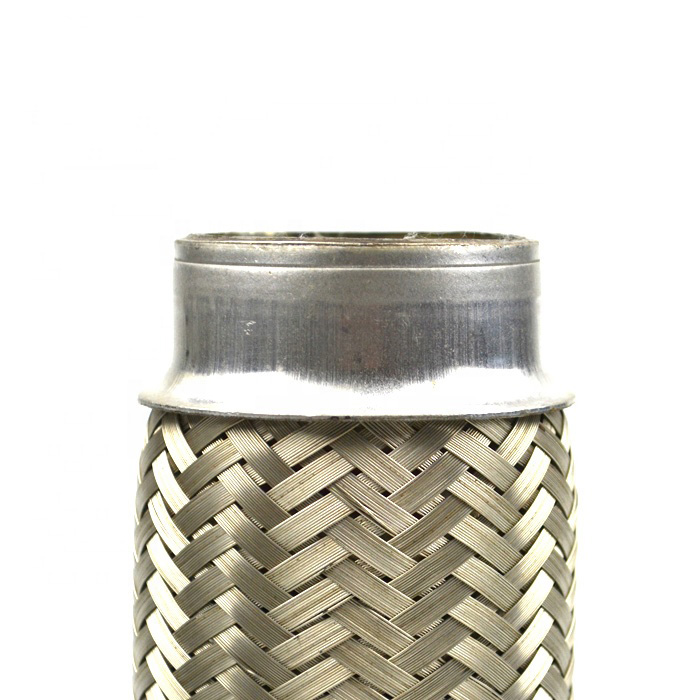

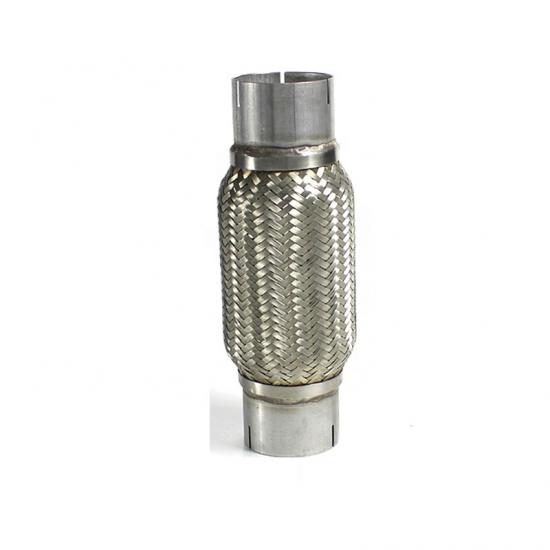

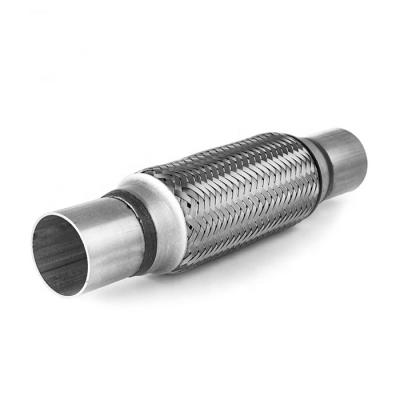

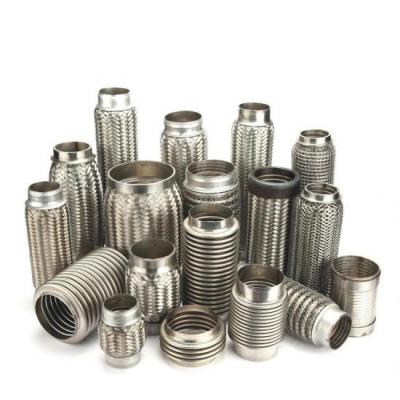

Produt show:

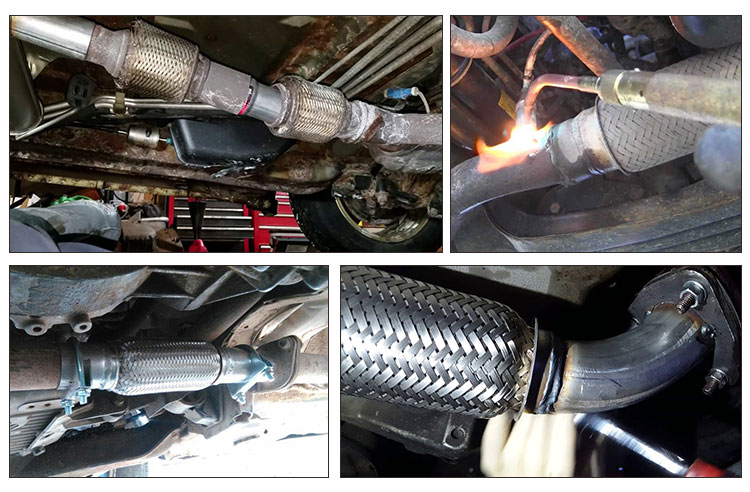

Application:
Bellows can be used in the exhaust system of large vehicles such as trucks, buses, buses, etc., for the high temperature portion of the engine exhaust manifold.
The Exhaust Bellows is installed in the exhaust pipe between the engine exhaust manifold and the muffler, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of the exhaust muffler system.
Packing&Shipping:
