Metal and ceramic catalysts are based on metals: alloyed Iron soldering aluminium. Ceramics: Cordierite is the main raw material. It is a metal and ceramic honeycomb carrier processed through a special process. It is made of unique coating materials with precious metals platinum and palladium as active components. It has high catalytic activity and good heat Stability, long service life, small thermal expansion coefficient, good bonding strength, good airflow impact resistance, high strength, etc. It is widely used in organic waste gas treatment in chemical, paint, enameled wire, spraying, oven and other industries.

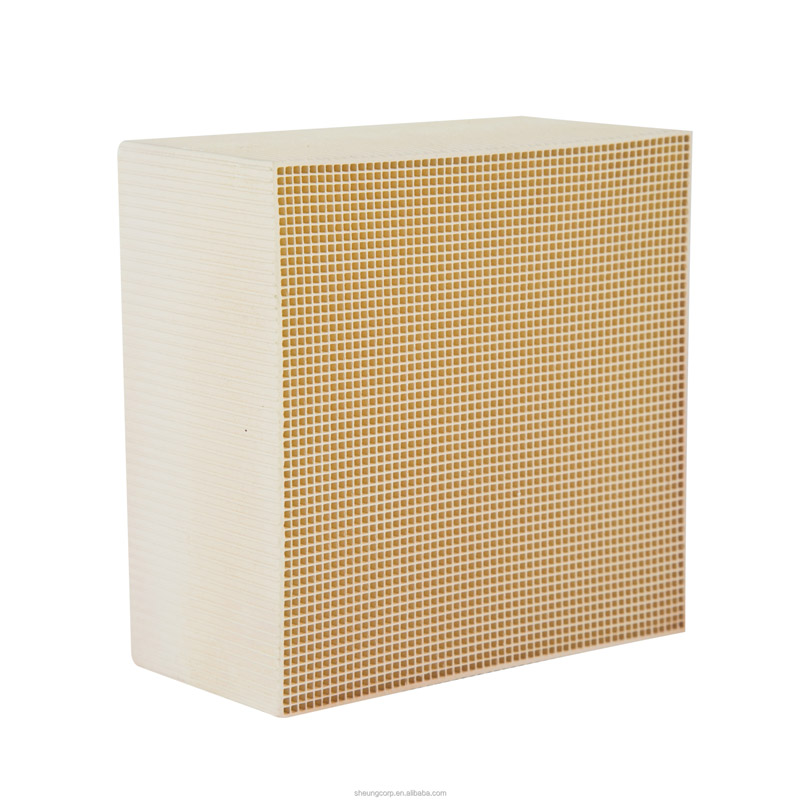

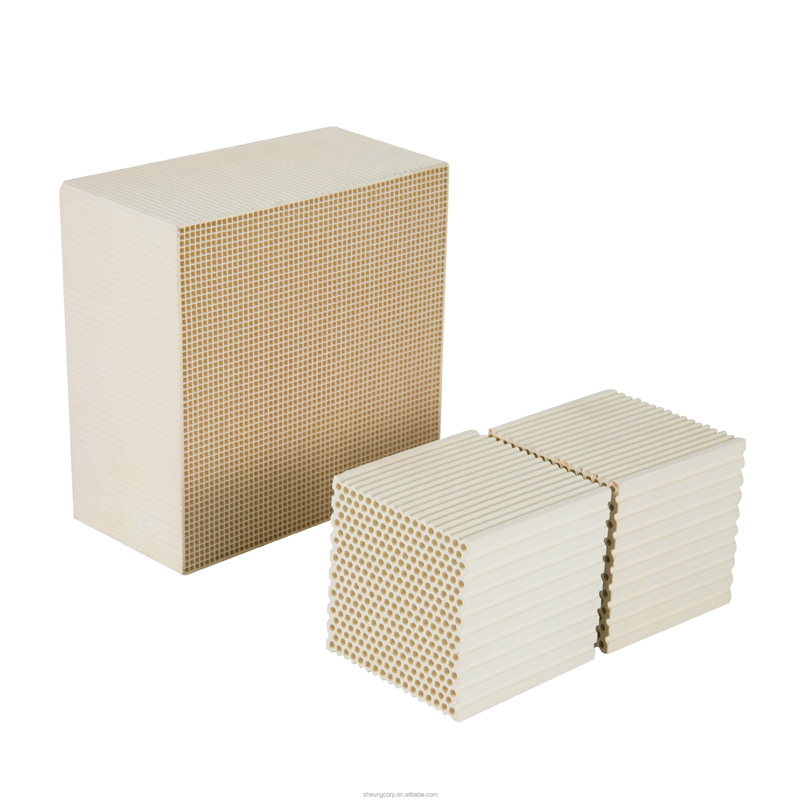

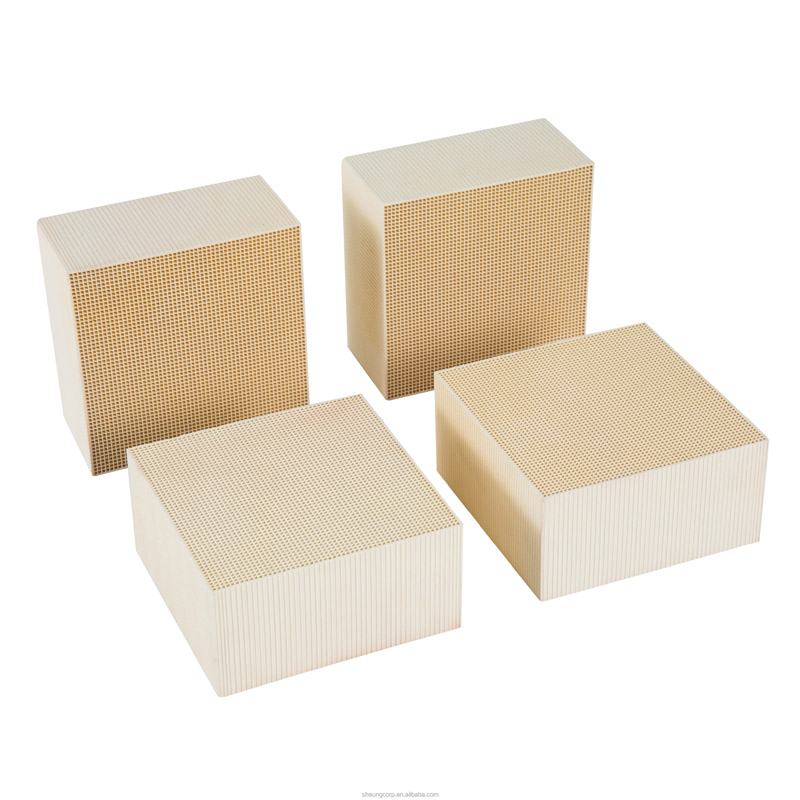

ceramic honeycomb catalytic converter
Technical Data:
|
|
Ceramic |
|
Material |
Cordierite |
|
Size |
50x50x50mm,100x100x50mm, 595x260x95mm(Customizable) |
|
Working Temperature |
220°C - 1100°C |
|
Shape |
Square, Rectangular, Round (Customizable) |
|
ell Density |
50-400CPSI (Customizable) |
|
Type |
Catalyst |
|
Application |
Enameled wire, paint room, waste gas treatment industry |

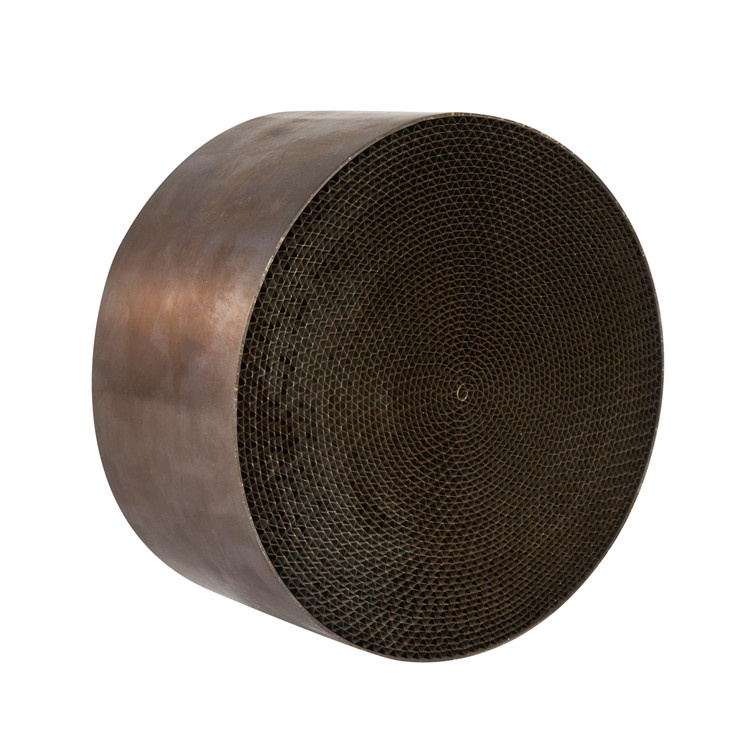

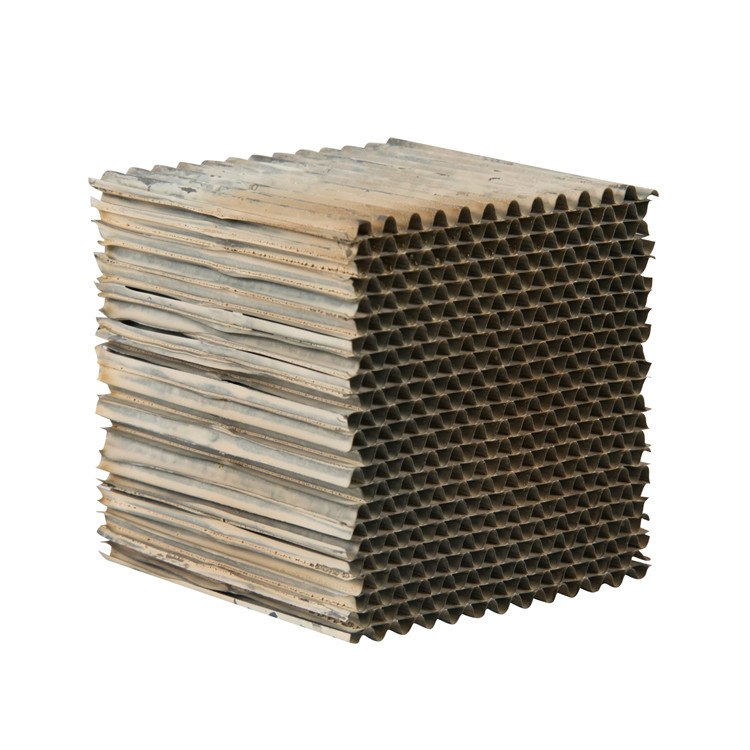

metallic substrate catalytic converter
Technical Data:
|
|
Metal |
|
Material |
Shell:441,444 Inner: Iron soldering aluminium 216 |
|
Size |
50x50x50mm,100x100x50mm, 595x260x95mm(Customizable) |
|
Working Temperature |
220°C - 1100°C |
|
Shape |
Square, Rectangular, Round (Customizable) |
|
Cell Density |
50-400CPSI (Customizable) |
|
Type |
Catalyst |
|
Applicatio |
Enameled wire, paint room, waste gas treatment industry |
